Digital endoscopes have revolutionized the medical and industrial fields, offering a non – invasive way to visualize internal structures. As a digital endoscope parts supplier, I am well – versed in the diverse components that make up these remarkable devices. In this blog, I will delve into the different types of digital endoscope parts and their significance. Digital Endoscope Parts
1. Image Sensor
The image sensor is the heart of a digital endoscope. It is responsible for capturing the images that are then transmitted to the display. There are two main types of image sensors used in digital endoscopes: Charge – Coupled Device (CCD) and Complementary Metal – Oxide – Semiconductor (CMOS).
CCD sensors have been around for a long time and are known for their high – quality image capture. They offer excellent light sensitivity and low noise levels, which results in sharp and clear images. CCD sensors are often used in high – end medical endoscopes where image quality is of utmost importance.
On the other hand, CMOS sensors are more recent and have gained popularity due to their lower power consumption and cost – effectiveness. They are also more easily integrated into smaller endoscope designs. CMOS sensors have made significant improvements in image quality over the years, and they are now a viable alternative to CCD sensors in many applications.
2. Light Source
A proper light source is essential for a digital endoscope to provide clear and well – lit images. There are several types of light sources used in digital endoscopes.
One common type is the halogen light source. Halogen lamps are relatively inexpensive and provide a warm, white light. However, they generate a significant amount of heat, which can be a drawback in some applications.
Another option is the light – emitting diode (LED) light source. LEDs have several advantages over halogen lamps. They are energy – efficient, generate less heat, and have a longer lifespan. LED light sources can also be easily adjusted to provide different levels of brightness, which is useful for different examination scenarios.
In some high – end endoscopes, xenon light sources are used. Xenon lamps produce a very bright and white light that closely mimics natural sunlight. This results in more accurate color reproduction, which is crucial in medical applications where color can be an important diagnostic factor.
3. Optical Fiber Bundle
The optical fiber bundle is used to transmit light from the light source to the tip of the endoscope. It consists of thousands of thin optical fibers that are bundled together.
There are two main types of optical fiber bundles: coherent and non – coherent. Coherent fiber bundles are used for transmitting images. They maintain the spatial relationship between the light rays, allowing for the transmission of a clear image from the tip of the endoscope to the eyepiece or camera.
Non – coherent fiber bundles, on the other hand, are used mainly for transmitting light. They do not preserve the spatial relationship of the light rays, but they are more flexible and can be used to illuminate the area being examined.
4. Insertion Tube
The insertion tube is the long, flexible part of the endoscope that is inserted into the body or object being examined. It is designed to be as thin and flexible as possible to minimize discomfort during insertion.
The insertion tube is made up of several layers. The outer layer is usually made of a smooth, biocompatible material to reduce friction and prevent damage to the surrounding tissues. Inside the tube, there are channels for the optical fiber bundle, the working channel (if present), and other components.
The flexibility of the insertion tube is crucial, especially in medical applications where it needs to navigate through the complex anatomy of the body. Different types of endoscopes may have different levels of flexibility depending on their intended use.
5. Working Channel
Many digital endoscopes are equipped with a working channel. This channel allows for the passage of various instruments, such as biopsy forceps, scissors, or lasers.
The size of the working channel can vary depending on the type of endoscope. In medical endoscopes, a larger working channel may be required for more invasive procedures, while in industrial endoscopes, a smaller working channel may be sufficient for tasks such as inspection and cleaning.
6. Control Section
The control section of the endoscope is where the operator can control the movement of the endoscope tip. It usually consists of a set of knobs or buttons that allow for up – down, left – right, and rotation movements.
The control section also contains the connection ports for the light source, camera, and other accessories. It is designed to be ergonomic, allowing the operator to have a comfortable and precise control over the endoscope.
7. Camera and Display
The camera is responsible for converting the optical image captured by the image sensor into an electronic signal. The electronic signal is then transmitted to the display, where the operator can view the images.
The camera can be either built – into the endoscope tip or connected externally. External cameras offer more flexibility in terms of upgrading and replacement.
The display can be a dedicated monitor or a portable device. High – resolution displays are preferred to ensure clear and detailed images. Some displays also offer features such as zoom, image capture, and video recording.

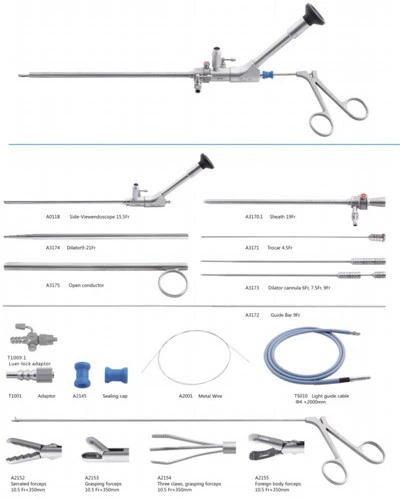

8. Accessories
There are also various accessories that can be used with digital endoscopes. These include biopsy forceps, cleaning brushes, and protective sheaths.
Biopsy forceps are used to take tissue samples for further examination. They come in different sizes and shapes depending on the type of tissue and the location of the biopsy.
Cleaning brushes are essential for maintaining the cleanliness of the endoscope. They are used to remove debris and contaminants from the insertion tube and other components.
Protective sheaths are used to cover the endoscope during use. They help to prevent cross – contamination between patients in medical applications and protect the endoscope from damage in industrial applications.
As a digital endoscope parts supplier, I understand the importance of providing high – quality components to ensure the optimal performance of endoscopes. Whether you are a medical institution, an industrial company, or a research organization, having access to reliable and innovative digital endoscope parts is crucial.
Fibrescope If you are in the market for digital endoscope parts, I encourage you to reach out to me. I can provide you with detailed information about the different types of parts, their specifications, and how they can meet your specific needs. Let’s start a conversation to discuss your requirements and find the best solutions for your endoscope applications.
References
- "Endoscopy: Principles and Practice" by John G. Hunter
- "Medical Device Technology: Fundamentals and Applications" by Robert A. Peura
